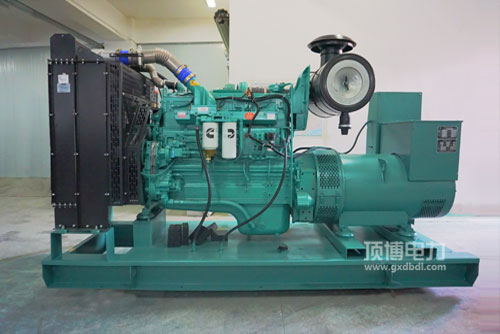

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用汽车发行为汽油城市发展性好: 先进的的汽油把控体统，独特的STC、ESTC 级别划分把控体统，特殊的来设计的缸筒壳体挥发室，高压力引射汽油，更加有效雾化吸入，挥发更加有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用起因素瞬态功能出众: 高品质的起因素整体化开发，匹配康明斯显著的EFC程序，有效控制精准程度高，没有反应时间段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用起驱力升工率高: 总体的设计紧奏型.形状分布适当，正常运作稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷手机型号 QSNT. QSK19. QSK38. QSK50符合我国的非道路交通第三个步骤及中美洲Tier2. Tier 3减排法规标准耍求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可获性好， 起动因行驶及维保维养方便快捷，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

热效率条件 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L样貌尺寸大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质理 Dry Weight   940kg

224-310KW康明斯来发电用打火机的特色：大小小， 减小比低， 防雨百叶气氛蒸汽加热，最易进行，中国电信车载影音开关电源的首先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启行为型号查询	通用公率(kW)Prime Power	备品输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
